Ford Dashboard Symbols And Meanings can feel confusing when a new light suddenly appears on your screen. I know it can make you wonder if your Ford needs immediate attention or if the symbol is simply giving you useful information.
You want to understand what each light means before deciding what to do next. I’ll help you identify common Ford dashboard symbols, understand their colors, and recognize which warnings deserve quick attention.
By learning Ford Dashboard Symbols And Meanings, you can feel more confident behind the wheel and respond to dashboard alerts more wisely. You’ll have a simple reference to help you understand important warning, indicator, and information lights.

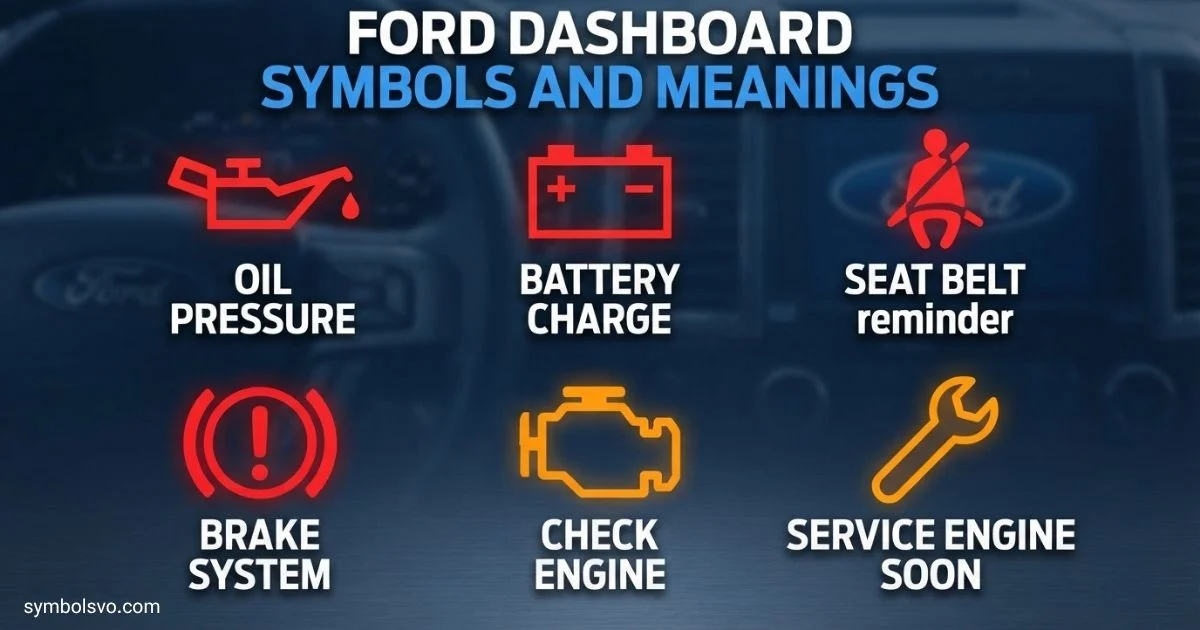

Ford Dashboard Symbols And Meanings
Ford dashboard symbols generally fall into three groups: warning lights, information indicators, and system-status indicators. The color and behavior of a light can help you understand how urgently you need to respond.
| Symbol or indicator | Common meaning | Typical action |
| 🛢️ Oil can | Low oil pressure | Stop safely and switch off the engine |
| 🌡️ Thermometer | Engine coolant temperature warning | Stop safely and allow the engine to cool |
| ⚠️ ! inside circle | Brake system warning | Check the parking brake; seek immediate assistance if it remains on |
| ABS | Anti-lock brake system fault | Drive carefully and have the system checked |
| 🔋 Battery | Charging or ignition system fault | Have the charging system checked |
| 👤/airbag | Airbag system fault | Arrange inspection as soon as possible |
| 🚗 with sliding lines | Stability/traction control | May indicate system operation or a fault, depending on behavior |
| ⛽ Fuel pump | Low fuel | Refuel soon |
| 🛞 ! | Low tyre pressure | Check tyre pressures |
| 🚪 | Door or bonnet open | Close the indicated opening |
| Seatbelt symbol | Seatbelt not fastened | Fasten the seatbelt |
| Engine-shaped icon | Engine or emissions fault | Have the vehicle diagnosed |
The same general symbol can behave differently depending on the vehicle. A light that briefly appears when the ignition is switched on can simply be part of the normal system check. Ford notes that some lamps should illuminate during startup and then go out after the engine starts.
Red, Amber And Green Dashboard Lights
Red lights generally indicate a condition that can require immediate attention. For example, Ford’s brake-system warning guidance says that driving with the warning illuminated can be dangerous, particularly if the parking brake is not applied.
Amber or yellow lights commonly indicate a fault, warning, or system that needs attention. They do not always mean you must stop immediately, but they should not be ignored.
Green or blue indicators are usually information indicators showing that a feature is operating, such as headlights or certain driver-assistance systems.
Always follow the owner’s manual for your specific Ford because the meaning and severity can vary by model and equipment.
Ford Fiesta Dashboard Symbols And Meanings
Ford Fiesta dashboard symbols vary across generations and model years. Common indicators include the ABS warning, brake system warning, airbag warning, engine warning, low-fuel indicator, rear fog-light indicator, seatbelt reminder, stability-control indicator, and shift indicator. Ford’s Fiesta owner’s manuals also explain that some warning indicators depend on the vehicle’s equipment.
Some important Fiesta symbols include:
- ABS — Indicates a possible fault in the anti-lock braking system when it remains illuminated while driving.
- Brake warning symbol — Can indicate that the parking brake is applied or that there is a brake-system issue.
- Airbag symbol — A continuously illuminated or flashing airbag warning can indicate a fault in the restraint system.
- Engine symbol — Can indicate an engine or emissions-related fault.
- Oil-pressure symbol — Can indicate low engine oil pressure and may require the engine to be switched off.
- Coolant-temperature symbol — Can warn of engine overheating.
- Fuel-pump symbol — Indicates that the fuel level is low.
- Seatbelt symbol — Reminds occupants to fasten their seatbelts.
- Stability-control symbol — Can flash while the system is operating or remain illuminated when a fault or deactivation is present.
- Shift indicator — Can suggest a gear change to improve fuel economy or emissions.
Ford’s Fiesta documentation confirms that the shift indicator can recommend a higher gear for better fuel economy and lower emissions.
2007 Ford Dashboard Symbols And Meanings
A 2007 Ford can have a different instrument cluster and warning system from newer Ford models. The exact symbols depend on the vehicle, so the owner’s manual is the best source for identifying every lamp.
Common warning categories include:
| Symbol | Meaning |
| ABS | Anti-lock braking system warning |
| Airbag | Airbag or restraint-system warning |
| Brake | Brake system or parking-brake warning |
| Engine | Engine or powertrain fault |
| Oil can | Oil-pressure warning |
| Battery | Charging or ignition-system warning |
| Steering wheel | Power-steering warning, where equipped |
| Sliding car | Stability-control warning, where equipped |
| Thermometer | Engine coolant temperature |
| Fuel pump | Low fuel |
| Door | Door-open warning |
| Seatbelt | Seatbelt reminder |
If an older Ford displays a warning that is unfamiliar, do not assume it has the same meaning as a symbol on a newer Ford. Instrument clusters and available systems changed over the years.
2012 Ford Dashboard Symbols And Meanings
The 2012 Ford dashboard can include warning lamps for the braking system, airbags, oil pressure, stability control, engine management, fuel level, and other vehicle systems.
A particularly important distinction is between a warning lamp that appears during startup and one that stays illuminated after the engine is running. Ford manuals explain that some lamps illuminate during the ignition check and should be referred to in the owner’s manual if they remain on.
For example, an ABS warning that remains on while driving can indicate an ABS malfunction. The vehicle may still have normal braking, but the anti-lock function may not operate correctly.
If the brake warning light and another brake-related warning appear together, treat the situation more seriously and follow the vehicle’s manual instructions.
2013 Ford Dashboard Symbols And Meanings
2013 Ford dashboard symbols depend on the specific model. Fiesta, Focus, Fusion, Escape, Transit, and other Ford vehicles can have different instrument clusters and equipment.
Common symbols include:
- Oil pressure warning — A warning related to engine oil pressure.
- Coolant-temperature warning — Can indicate overheating.
- Brake warning — Can relate to the parking brake or brake system.
- ABS warning — Indicates a possible anti-lock braking system fault.
- Airbag warning — Indicates a possible restraint-system fault.
- Engine warning — Indicates an engine or emissions-related problem.
- Stability-control indicator — Can flash when the system operates.
- Low-fuel warning — Indicates that refuelling is needed soon.
- Seatbelt warning — Indicates an unfastened seatbelt.
- Fog-light indicators — Show that the relevant fog lamps are switched on.
Ford’s 2013 Fiesta documentation also includes messages such as ABS malfunction, brake-system malfunction, hill-start-assist availability, and steering-lock information.
2016 Ford Dashboard Symbols And Meanings
A 2016 Ford may display both traditional warning lamps and messages in the information display. The combination depends on the model and its equipment.
Some important symbols to understand are:
Oil pressure: If the oil-pressure warning appears while the engine is running, Ford advises stopping safely and switching the engine off. The oil level should be checked, but a correct oil level does not rule out a system fault.
ABS: An illuminated ABS warning while driving can indicate an anti-lock braking fault. The conventional braking system may continue to operate, but ABS may not.
Stability control: A flashing stability or traction-control symbol can indicate that the system is actively operating. A continuously illuminated symbol can indicate a fault or that the system has been switched off.
Other common indicators include low fuel, seatbelt, airbag, battery/charging, brake, engine, door-open, and lighting indicators.

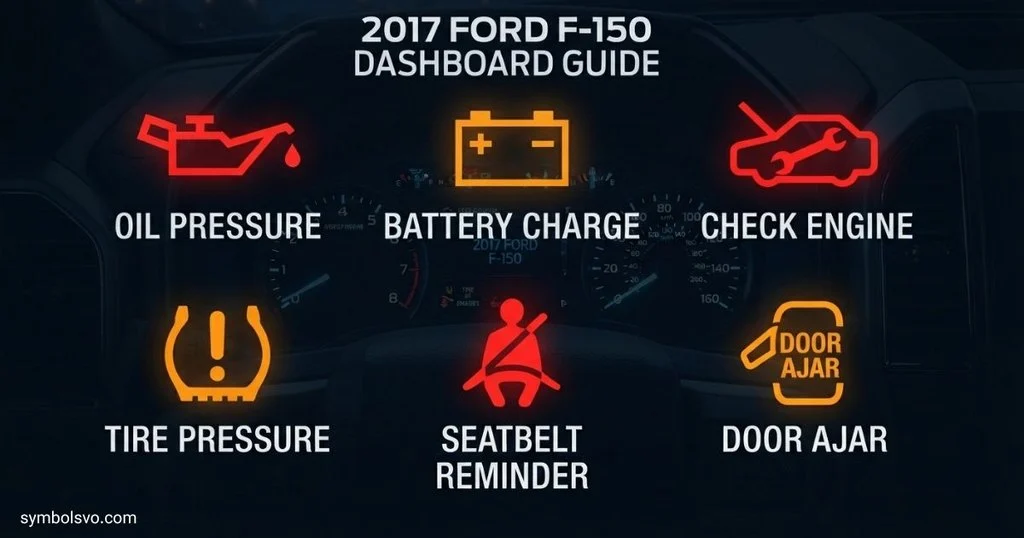

2017 Ford Dashboard Symbols And Meanings
The 2017 Ford dashboard can contain several driver-assistance and vehicle-status indicators in addition to traditional warning lamps.
Common symbols may include:
- Collision warning — Alerts the driver to a detected collision risk on equipped vehicles.
- Lane-keeping indicator — Shows the status of a lane-keeping system when fitted.
- Blind-spot indicator — Shows the status of the blind-spot information system on equipped vehicles.
- Cruise-control indicator — Shows that cruise control is active.
- Low tyre-pressure symbol — Indicates that one or more tyres may be below the correct pressure.
- Auto start-stop symbol — Shows the status of the automatic engine stop-start function on equipped vehicles.
- Hill-start assist indicator — Shows operation or status of the hill-start system where equipped.
Not every 2017 Ford has these features. Ford specifically notes that warning lamps and indicators depend on the vehicle’s equipment and instrument cluster.
2018 Ford Dashboard Symbols And Meanings
The 2018 Ford dashboard uses a mixture of warning lamps, indicators, and information messages. A 2018 Fiesta owner’s manual, for example, lists airbag, ABS, oil pressure, stability and traction control, shift, and other indicators.
A useful way to understand the symbols is by system:
| Vehicle system | Possible dashboard symbol |
| Engine | Engine-shaped warning |
| Brakes | Circle with exclamation mark or brake wording |
| ABS | ABS inside a circle |
| Oil | Oil-can symbol |
| Cooling | Thermometer symbol |
| Charging | Battery symbol |
| Airbags | Person with airbag symbol |
| Stability control | Sliding-car symbol |
| Tyres | Tyre with exclamation mark |
| Fuel | Fuel-pump symbol |
| Lighting | Headlamp or fog-light indicator |
| Seatbelts | Person with belt symbol |
If a symbol stays on after starting, use the owner’s manual for the exact model rather than relying only on the icon itself.
Ford Dashboard Symbols And Meanings 2022
Modern 2022 Ford vehicles can have considerably more information displayed through the instrument cluster than older models. Depending on the vehicle, this can include driver-assistance, lane-keeping, collision-warning, blind-spot, auto start-stop, tyre-pressure, and other indicators.
Ford’s current dashboard guidance lists examples such as the collision-warning indicator, lane-keeping indicators, blind-spot information indicator, low tyre pressure, auto start-stop, brake, oil pressure, engine, and stability-control indicators.
One useful distinction is between an indicator and a warning. A green indicator may simply confirm that a function is active. A red or persistent warning can require immediate attention.
For a 2022 Ford, check the digital instrument-cluster message as well as the icon. The message can provide additional information about what the vehicle has detected.
Ford Dashboard Symbols And Meanings 2023
The 2023 Ford dashboard may include traditional warning lights alongside advanced driver-assistance indicators. Depending on the model, you may see symbols for lane keeping, collision warnings, adaptive or conventional cruise control, blind-spot monitoring, parking assistance, tyre pressure, and auto start-stop.
Common warning symbols still follow familiar conventions:
- Red oil-pressure symbol: Stop safely and investigate immediately.
- Red brake warning: Check the parking brake and seek assistance if the light remains on unexpectedly.
- Engine warning: Have the vehicle checked, especially if the light flashes.
- ABS warning: Have the braking system inspected.
- Tyre-pressure warning: Check the pressure of all tyres.
- Airbag warning: Arrange an inspection of the restraint system.
- Coolant-temperature warning: Stop safely if the engine is overheating.
Ford’s official guidance says a flashing engine warning requires reducing speed and avoiding harsh acceleration or deceleration while arranging immediate inspection.
Ford Dashboard Symbols And Meanings 2024
Ford vehicles from 2024 can use a combination of physical warning lamps, digital indicators, and information messages. The exact set varies by model and specification.
Some common 2024 symbols include:
🛢️ Oil pressure: A serious warning that can require stopping the vehicle and switching off the engine.
🌡️ Coolant temperature: Indicates that the engine may be overheating. Ford advises stopping as soon as it is safe and switching off the engine when this warning appears while driving.
🛞 ! Tyre pressure: Indicates that one or more tyres may be below the correct pressure.
🚗〰️ Stability and traction control: The symbol can flash when the system is operating. A persistent warning can indicate a fault.
⚠️ Brake system: Can indicate an applied parking brake, low brake fluid, or a brake-system fault, depending on the vehicle.
A inside a circular arrow: Indicates the auto start-stop system. Ford explains that an amber indication can signal a fault requiring inspection on equipped vehicles.
The exact symbol should always be matched with the vehicle’s owner’s manual.

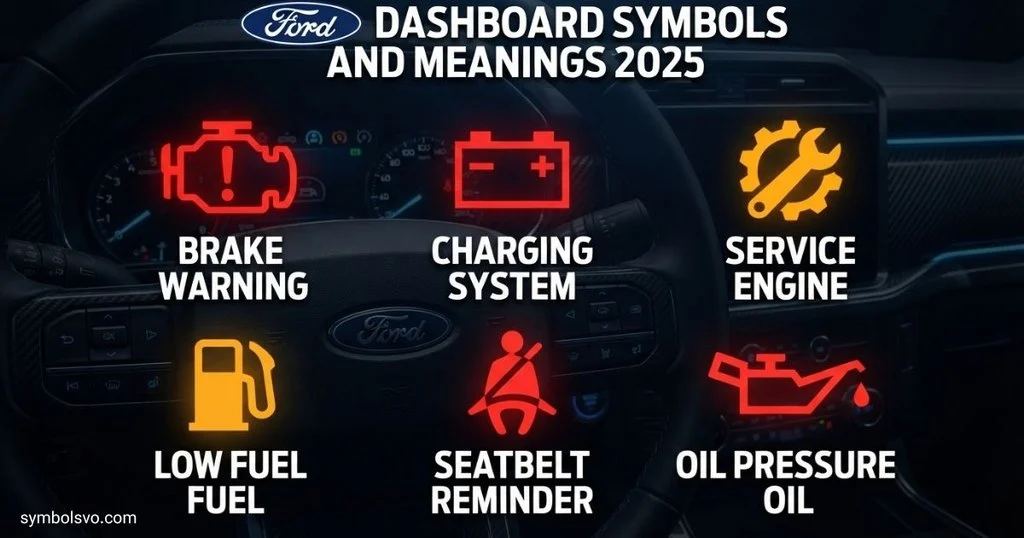

Ford Dashboard Symbols And Meanings 2025
2025 Ford vehicles can have a wide range of dashboard indicators because Ford offers different models, powertrains, and driver-assistance systems. A symbol found in one 2025 Ford may not appear in another.
Current Ford guidance includes indicators for features such as auto high beam, collision warning, cruise control, lane keeping, blind-spot information, low tyre pressure, auto start-stop, hill launch assist, and stability and traction control.
For serious warnings, the most important step is not simply identifying the icon but responding correctly.
If the oil-pressure warning appears while the engine is running, stop safely and switch the engine off. If the coolant-temperature warning appears, stop safely because continued driving can risk engine damage. Ford gives similar immediate-stop guidance for these conditions.
If the engine warning light flashes, Ford advises reducing speed immediately, avoiding harsh acceleration and deceleration, and arranging an immediate inspection.
Ford Dashboard Symbols And Meanings UK
Ford dashboard symbols used in the UK generally follow the same basic warning-light principles, but individual vehicles can differ by model, specification, engine, and market.
Ford UK explains that some lights simply confirm settings, such as fog lights being switched on, while others warn about conditions that may require immediate attention.
Some common UK Ford indicators include:
| UK dashboard symbol | Meaning |
| ABS | Anti-lock braking system warning |
| ⚠️ Brake symbol | Brake-system warning |
| 🛢️ | Oil-pressure warning |
| 🌡️ | Engine coolant temperature |
| 🔋 | Ignition/charging system |
| ⛽ | Low fuel |
| 🛞 ! | Low tyre pressure |
| 🚗〰️ | Stability or traction control |
| Airbag | Airbag system warning |
| Seatbelt | Seatbelt reminder |
| Fog-light symbol | Front or rear fog lights |
| Engine symbol | Engine fault |
| ❄️ | Frost or low outside temperature indicator |
Ford UK states that its published list covers common warning lights and that drivers should consult the owner’s manual if their dashboard displays an icon that is not included.
For UK drivers, remember that mph, km/h, tyre-pressure units, and other display settings can differ depending on the vehicle. These settings do not change the basic meaning of the main warning symbols.
FAQ
What Is The Most Serious Ford Dashboard Warning Light?
Red oil-pressure, brake-system, and engine-temperature warnings can require immediate attention. If a warning indicates overheating or low oil pressure, stop safely and switch off the engine as directed by the owner’s manual.
What Does The Ford Engine Warning Light Mean?
The engine warning light indicates that the vehicle has detected an engine, emissions, or related system fault. A flashing engine warning is more urgent and should be addressed immediately.
Can I Drive With A Ford Dashboard Warning Light On?
It depends on the symbol. Some indicators simply show that a feature is active, while others indicate a fault. Red warnings and flashing warning lights generally require faster action. Check the owner’s manual before continuing.
Why Do Ford Dashboard Lights Come On When I Start The Car?
Many Ford warning lamps illuminate briefly during startup as part of a system check. They should normally go out after the vehicle starts if no fault is detected.
Are Ford Dashboard Symbols The Same For Every Model Year?
No. Symbols and available indicators can vary by model, year, engine, trim, market, and optional equipment. Ford specifically notes that not all warning lamps and indicators are available on every vehicle.
Conclusion
Ford dashboard symbols give you quick information about your vehicle’s systems, from basic indicators such as headlights and turn signals to important warnings involving the engine, brakes, oil pressure, cooling system, airbags, and tyres. Knowing the difference can help you respond correctly instead of ignoring an unfamiliar light.
The model year matters because a 2007 Ford, Fiesta, 2013 Ford, and newer 2025 Ford may use different instrument clusters and offer different safety or driver-assistance features. Use the relevant section above as a starting point, then confirm the exact symbol in your owner’s manual.
If a warning is red, remains illuminated after startup, flashes unexpectedly, or appears with an unusual message, take it seriously. For safety-critical warnings, stop in a safe place when required and have the vehicle inspected rather than guessing what the symbol means.
